Description

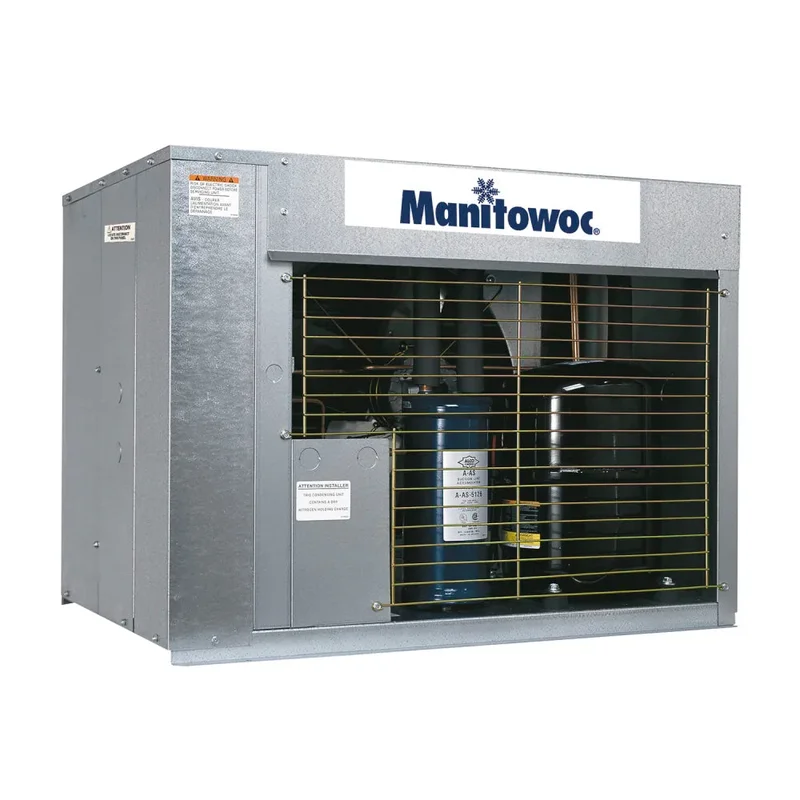

The Manitowoc CVDF0900 is a high-efficiency remote air-cooled condensing unit engineered for use with Indigo® NXT QuietQube® ice machine heads, specifically the IF-0900C and IBF-0820C series. By moving the heat-generating compressor and condenser fan to a remote outdoor location, the CVDF0900 transforms your kitchen environment—eliminating the loud decibel levels and intense ambient heat common with standard ice machines. This remote system not only creates a more comfortable workspace but also significantly reduces the cooling load on your facility’s HVAC system, leading to lower utility costs and more consistent ice production cycles.
- Compatibility: Optimized for Manitowoc IF-0900C and IBF-0820C QuietQube® Ice Heads
- Cooling Type: Remote Air-Cooled (CVD Technology)
- Electrical: 208-230V / 60Hz / 1-Phase
- Environmental Advantage: Diverts heat and noise away from the point of service
- Build Quality: Weather-protected galvanized steel housing for outdoor durability
- Performance: Supports high-volume ice production in high-ambient temperature conditions
- Installation: Requires dedicated refrigerant line sets (sold separately)
Technician’s Note: The CVDF0900 is essential for the “QuietQube” experience. When planning your installation, ensure the remote unit is positioned within the allowable vertical and horizontal distance specified by Manitowoc for your specific line set. Proper oil return is critical; ensure the line sets are installed without “traps” that could starve the compressor. We recommend a professional seasonal cleaning of the condenser coils to ensure the IF-0900C or IBF-0820C head maintains its peak harvest rate during the hot summer months.
